High Flow Inline Filter Gac / Phosphate

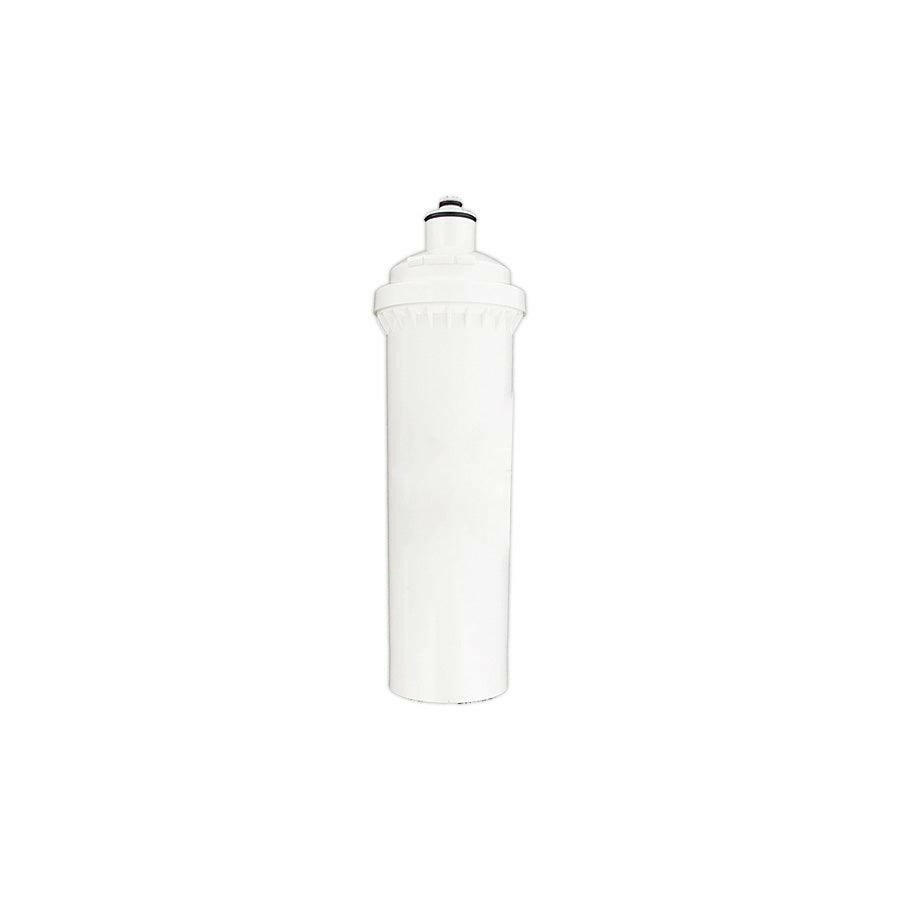

High Flow Inline Filter Cartridge, 1 Micron "Commercial Grade" Compatible with Everpure QL1 & QL2U Head, replaces PBS-200

APPLICATION

• Residential and Commercial.
• Reduces sediment, chemicals, chlorine, metals, giardia and cysts.

GENERAL INFO

High Flow water filter cartridge with high quality multistage filtration. Includes 1 micron filtration, giardia and cyst rated, granular activated carbon filter that vastly improves water quality to produce great tasting healthier water and ice. Also comes with phosphate for scale reduction.

FEATURES | BENEFITS

• Made in the USA
• 8 Litres per minute

• 1 Micron Carbon Block

• Reduces: Cysts, heavy metals, scale, particulates, chlorine, turbidity, bad taste and odour

• Enhances equipment protection by regulating scale buildup

• Utilises technology that optimises surface area for contaminant reduction

• Moulded unit (reduces the risk of contamination from adhesives)

• Laboratory tested, tried and proven performance

• Chlorine reduction is greater than 95%
  * does not remove minerals that may be beneficial to your health.

GENERAL INSTALLATION/OPERATION/MAINTENANCE REQUIREMENTS

• Note flow direction of filter.

• Flush new cartridge with 18.95 litres of water through filter at the rated service flow before use and check for leaks. If leaks occur, check tightness of tubing and fittings. If leaks persist, discontinue use and call your supporting dealer.
• Replace cartridge when rated capacity is reached, or when flow becomes too slow.

• Install in compliance with state and local laws and regulations.

CERTIFICATIONS/COMPLIANCE

Tested and Certified by NSF International against ANSI/NSF Standard 42 for Taste and Odour Reduction and Chlorine Reduction.

SPECIFICATIONS

Capacity
37,500 Litres

Min/Max Temperature
2 - 38°C

Min/Max Pressure
200 - 520˜ kPa

Micron Rating
1 micron*

Size
31cm x 6.4 cm

Filter Media
Specialised Carbon Block

Maximum Flow
8 Lpm at 420 kPa

CONNECTING TO YOUR COLD WATER LINE

Isolate the Cold Water Line. Turn off the water supply to the house if necessary.

If your cold water line is a flexi hose only use the take-off valve kit included. (See note further note below)

Unscrew the flexi hose leading to the Mixer Tap where it meets the cold water line.

Screw the female end of flexi take-off valve onto the male thread that is exposed. (Use Teflon tape if required)

Screw the flexi pipe back onto the female end of the flexi take-off valve. (Use Teflon tape if required)

Now connect the isolating valve using Teflon tape to the body of the flexi take-off valve.
Next connect the tubing supplied by placing the brass crox nut (in reverse)  over the tubing, then insert the nylon spigot into the tube end and slide the nylon olive over the tubing.

Now insert the tubing into the isolating valve ensuring it is pushed all the way in and begin to turn the crox nut in a clockwise direction until it is tight.

NOTE: If there is no flexi hose for the cold water line under the sink then you can purchase / connect using a dishwasher take-off valve (pictured) directly onto the cold water line that feeds into the dishwasher.

 If this is also not an option you can connect to the cold water line by using either a copper or plastic pipe take-off valve (as pictured) however you will need to purchase either of these C-Clamp Kits.
